<< Click to Display Table of Contents >> Navigation:  »No topics above this level« Migrate V2 Configuration to a V3 Project

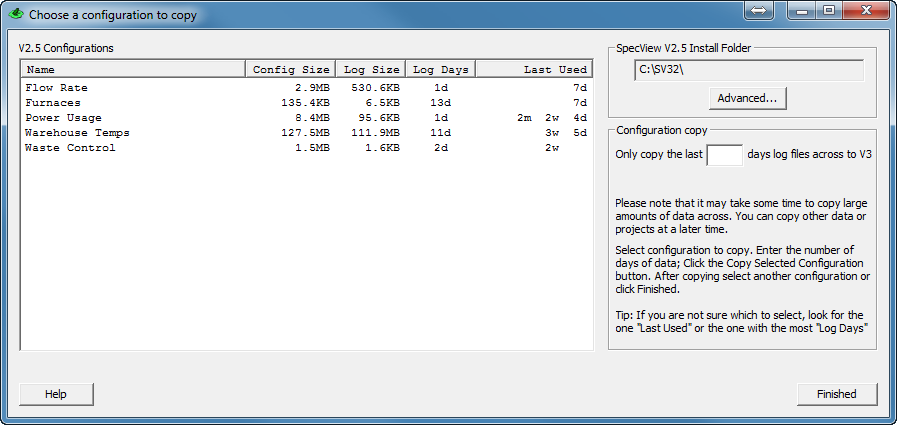

This utility is run by SpecView Version 3's installer, to facilitate the migration (copying) of Version 2/2.5 Configurations to Version 3 Projects.





The most recently used configuration will be highlighted.



A single configuration is copied at a time, and this can be repeated until all configurations have been copied.



Selecting a line in the list will fill in the number of days of log files, this number can be edited before the copy.



The 'Log Days' are not necessarily consecutive days, for example, 5 days of log data is the last 5 days that data was logged on, not the last 5 days from today.

There is a line displayed under the number of days field that shows the time-span over which these log files were collected.



If no configurations are listed or if the required configuration is missing click the Advanced button.



Note that this will not convert any Trend Charts in the Version 2/2.5 Configuration to Version 3 style Trend Charts, this conversion is done afterwards.



Migration Warnings/Errors





Document control: SpecView User Manual for Version 3.1 - Revision: 31.259 (for SpecView Version 3.0.021 Pre-Release)
