<< Click to Display Table of Contents >> Navigation:  Recipes > Selecting Variables to be Included in Recipe



NOTE: In order to be able to do this you must first have setup a GDW containing all the variables which you intend to put in to the Recipe. Read Adding Numeric Values to a GDW



In Edit Mode open the GDW which is to have the Recipe defined on it.

Select Recipe Mode by clicking on the toolbar (or View Menu - Recipe Mode)

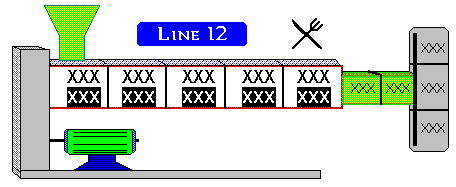

The cursor changes to a knife and fork and any variables that have already been selected for Recipe will highlight.

To add or remove a variable, click the value with the knife and fork cursor. However, if a variable is Grouped with other items on the GDW then it will need to Ungrouped for use in Recipe.

NOTE: As you move the cursor over each variable the Status Bar shows the name of the variable

Be sure NOT to select any variables that are Read Only.
