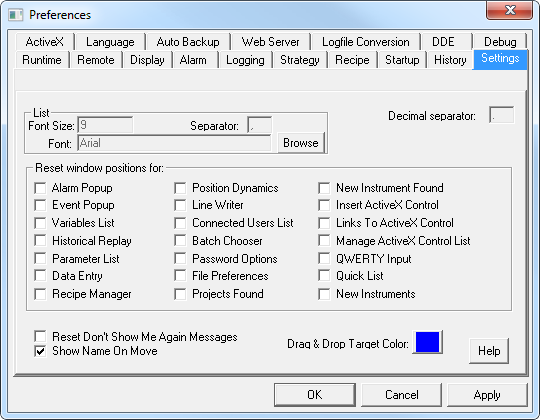

<< Click to Display Table of Contents >> Navigation:  Editing a SpecView Project > Preferences > Preferences - Settings





List

Font Size: 9

The font size to be used

Separator: comma

This is the character used by the current language to delimit .CSV files.

This setting cannot be changed from within SpecView, it must be changed from the Regional Settings in the Windows Control Panel.

It is used by Logfile Convert, Recipe Export/Import and Export/Import variables list on the Setup menu .

Font: Arial

The font to be used



Decimal separator: full stop

This is the character used by the current language to be used as the decimal point.

This setting cannot be changed from within SpecView, it must be changed from the Regional Settings in the Windows Control Panel.



Reset window positions for:

Alarm Popup

Event Popup

Variables List

Historical Replay

Parameter List

Data Entry

Recipe Manager

Position Dynamics

Line Writer

Connected Users List

Batch Chooser

Password Options

File Preferences

Projects Found

New Instrument Found

Insert ActiveX Control

Links to ActiveX Control

Manage ActiveX Control List

QWERTY Input

Quick List

New Instruments

Resets the position of the respective box on the screen, this is useful if using different sized monitors and the box is displayed too high or too far to the right where it can't be seen.



Reset Don't Show Me Again Messages:

This unsets all of SpecView's warning message boxes which have a checked 'Do not show me again' checkbox, so that they will then subsequently be shown.



Show Name On Move: Enabled

In Edit Mode moving an N/R (or the value if Online) shows the name of the variable on the status bar.





NOTE: * indicates: A change will not take effect until next entry to Runtime Mode

Full list of Preferences
