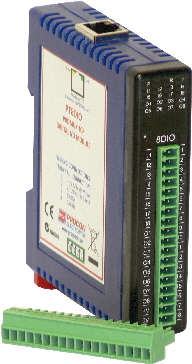

PT8DIO - 8 Digital Input/ Output Module

The PT8DIO module is an 8 channel digital input and 8 channel digital output module.

The inputs are isolated from the logic by bi-directional opto-couplers. The common is connected internally to either the -volts or +volts field power supply terminals using a jumper link which is situated inside the housing.

The inputs have internal counters associated with them. These counters are 32 bit counters allowing a count value from 0 to 4294967295. The count value can be cleared by writing a zero to the associated registers or preset to any other value using the same method.

Note: The count values are not battery backed-up and will be lost if power is turned off.

Order Code: PT8DIO - PROMUX TCP 8 Digital Input/ Output Module

Click here to see the Procon User Manual.

Digital Inputs	8
Digital Counters	8
Counter Resolution	32 Bit
Counter frequency	1 KHz (max)
Pulse width	500usec (min)
Counter Mode	UP or UP/DOWN
Digital input 0 level	0 to +6.5Vdc
Digital input 1 level	+12Vdc to +24Vdc
Input Impedance	2200 ohms
Input filter	Max 6553 msec.
Status Indication - inputs	LED per channel
Digital Outputs	8
Type	NPN Open collector
Max Load Current	100mA per channel
Max load Voltage	36Vdc
Vce (on) Voltage	1.1V (max)
Watch dog output timer	Disable or 1-255 sec adjustable
Isolation (Field & Logic)	1500 V RMS
Status Indication - outputs	LED per channel
Power supply (Field)	+12Vdc to +24Vdc
