Touch screen support in Runtime Mode has been enhanced. However, touch screens are not supported in Edit Mode.

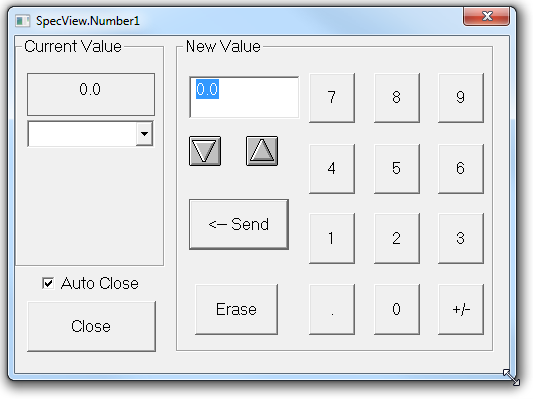

Data entry boxes are now resizeable. Their size and position is remembered, which is particularly helpful when using a Touch Screen, as larger buttons are easier to use
Trend charts now have a popup menu that can be accessed from Runtime Mode using either the left or right mouse buttons, for compatibility with touch screens which don't have a 'right' mouse button.
In Edit Mode the popup menu is only available using the right mouse button. This is because the left button selects the Trend Chart for moving and resizing.
On the Button & View tab on the Trend Chart Properties box there is the option to have the Setup button shown in the top-left corner of the Trend Chart.
The Setup button is useful for touch screen users to be able to quickly and easily access the Trend Chart Properties box. The alternative method of opening this box is by choosing Setup Chart from the popup menu.
